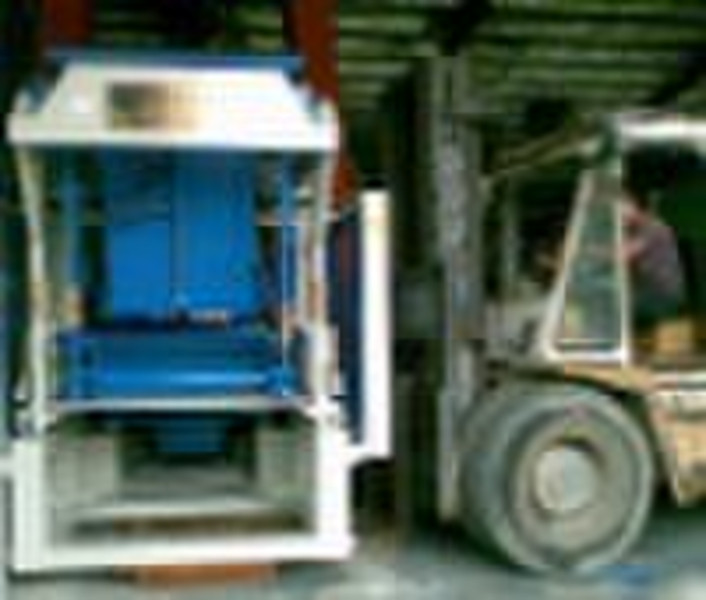

Brick making machine

Concrete Block Making Machine(block machine,automatic block machine,brick machine) pass through ISO9001 testify. Technical Data: Vibration frequency4000-4800per/minMolding cycle15-20(s)Total power25.5(KW)Total weight7500kgPallet size860*680*20(mm)(Bamboo gum plank)Shape size12550*2450*2500(mm) Main technique characteristics: Specification&Capacity of Main Products ItemsSize(LxWxH)Pcs./mouldPcs./hourPcs./8hourHollow Block390x190x19069827,856Porous Bricks240x115x90152,45519,636Dimension Bricks240x115x53305,40043,200Dimension Bricks240x115x53325,76046,080Holland Block200x100x60213,02424,192 Note: the above yield form computes a value for the theories. Modeling the period,volume of production has something to do with original material, product type and other factor. 1. Control the system: the PLC intelligence controls. Man-machine interface, control the system to install the safe logic control, produce the procedure and breakdown to examine a patient to show the function, also the long range controls the system to get stripe and breaks down examine a patient and Expel the function, carry out and didn't need the professional, needing tobe trained in brief can immediately control to operate the function. 2. Vibrate the machine: The adoption changes many source types of the electrical engineering to synchronously vibrate the system, the is adjustable, carrying out the low frequencyto add toanticipate, the high models of the work principle all can acquire by adapting the different material and product good flap the real results fruit, Vibrating the accelerationcan amount to 16 classes. 3. Model the machine:Adopting a steel and special kind welds the craft manufacturing, very fastness. 4. Lead to the pillar:Adopting the super and strong special kind steel material makes into, the surface plates the chrome to have the good anti- to twist and bears the ability of whetting. 5. Cloth car cloth:Special anticipate the car cloth to revolve to compulsory descend to anticipate the device, thoroughly solve the wet syrup and many bore cloth hard nut to crackses. 6. At first material:Can well use the sand, stone powder, coal gangue, powder ash from stove, the steel residue...etc. various discard the residue. 7. Product scope:Can produce various colourful side(the layering cloth) and a body a brick, wharf catena brick, plant the grass brick, water conservancybrick, hollow carve the piece, have another the bore brick and don't need to burn to mark brick etc.
